Analysis of the electron-phonon coupling

We analyze the effects of the electron-phonon coupling in the electronic and optical properties of bulk Si.

This analysis is base on the web page : https://www.yambo-code.eu/wiki/index.php/Electron_Phonon_Coupling

run_dir = 'Electron_phonon_Si'

Due to the way in which the ph.x is implemented it is more convenient to run each step of the calculations in a specific folder. So the prefix of all the computations is the same but they are exectuded in differen paths.

SCF and NSCF calculations

rr = C.RunRules(mpi=mpi,omp_num_threads=omp)
code = C.QeCalculator(rr)
code.global_options()

Initialize a QuantumESPRESSO calculator with scheduler direct

{'scheduler': 'direct',
 'mpi': 4,
 'omp_num_threads': 1,
 'executable': 'pw.x',
 'skip': True,
 'clean_restart': True,
 'dry_run': False,
 'wait_end_run': True,
 'activate_BeeOND': False,
 'verbose': True}

First we perform a scf calculation on a 8x8x8 k grid to ensure that the electronic density of the GS is converged.

The convergence threshold is set to 1e-12, this value and k grid are loosend w.r.t. the paramteres used in the original tutorial to redcue computational time.

Note that, following the Yambo tutorial, the geometry of the lattice is set using ibrav=0 with the explicit values of the cell parameters. This is done to avoid possible incompatibility between the PW and Yambo conventions for the FCC lattice.

prefix = 'si'
name = 'si.scf'
inp= I.PwInput(file='IO_files/Input_for_electron_phonon_Si_tutorial/si.scf.in')
inp.set_prefix(prefix)
inp.set_pseudo_dir('pseudos',abs_path=True)
#print(inp.convert_string())

scf_run_dir = os.path.join(run_dir,'scf')
results = code.run(input=inp,run_dir=scf_run_dir,name=name)
results

Skip the run of si.scf

'/home/marco/Applications/MPPI/sphinx_source/tutorials/Electron_phonon_Si/scf/si.save/data-file-schema.xml'

Then we perform a nscf calculation on a smaller 4x4x4 grid with 12 bands.

inp.set_nscf(12,force_symmorphic=True,conv_thr=1e-12)
inp.set_kpoints(points=[4,4,4])
#print(inp.convert_string())

nscf_run_dir = os.path.join(run_dir,'nscf')
results = code.run(input=inp,run_dir=nscf_run_dir,name=prefix,source_dir=os.path.join(scf_run_dir,prefix+'.save'))
results

Skip the run of si
The folder /home/marco/Applications/MPPI/sphinx_source/tutorials/Electron_phonon_Si/nscf/si.save already exists. Source_dir Electron_phonon_Si/scf/si.save not copied

'/home/marco/Applications/MPPI/sphinx_source/tutorials/Electron_phonon_Si/nscf/si.save/data-file-schema.xml'

data = P.PwParser(results)

Parse file : /home/marco/Applications/MPPI/sphinx_source/tutorials/Electron_phonon_Si/nscf/si.save/data-file-schema.xml

kpoints=-data.kpoints
#kpoints[4] = np.array([-0.375000000,-0.125000000,0.125000000])
kpoints

array([[-0.   , -0.   , -0.   ],
       [-0.125, -0.125,  0.125],
       [ 0.25 ,  0.25 , -0.25 ],
       [-0.25 , -0.   , -0.   ],
       [ 0.125,  0.375, -0.375],
       [-0.   ,  0.25 , -0.25 ],
       [ 0.5  , -0.   , -0.   ],
       [ 0.5  , -0.25 , -0.   ]])

Phonon calculations

With this calculation we can compute the dynamical matrix elements and the dvscf files, these quantities are the analougous of the GS density for the phonon calculations

rr = C.RunRules(mpi=mpi,omp_num_threads=omp)
code_ph = C.QeCalculator(rr,executable='ph.x')
#code_ph.global_options()

Initialize a QuantumESPRESSO calculator with scheduler direct

prefix = 'si'
name = 'si.phonon'
inp = I.PhInput()
inp.set_prefix(prefix)
inp['inputph']['fildvscf'] = "'si-dvscf'"
inp['inputph']['fildyn'] = "'si.dyn'"
inp['inputph']['electron_phonon'] = "'dvscf'"
inp['inputph']['epsil'] = '.true.'
inp.set_kpoints(Tools.build_pw_klist(kpoints))
#print(inp.convert_string())

ph_run_dir = os.path.join(run_dir,'phonon')
results = code_ph.run(input=inp,run_dir=ph_run_dir,name=name,source_dir=os.path.join(scf_run_dir,prefix+'.save'))

create the run_dir folder : 'Electron_phonon_Si/phonon'
copy source_dir Electron_phonon_Si/scf/si.save in the /home/marco/Applications/MPPI/sphinx_source/tutorials/Electron_phonon_Si/phonon/si.save
run command: mpirun -np 4 ph.x -inp si.phonon.in > si.phonon.log
computation si.phonon is running...

Note: The following floating-point exceptions are signalling: IEEE_DENORMAL
Note: The following floating-point exceptions are signalling: IEEE_DENORMAL
Note: The following floating-point exceptions are signalling: IEEE_DENORMAL
Note: The following floating-point exceptions are signalling: IEEE_UNDERFLOW_FLAG IEEE_DENORMAL

computation si.phonon ended

Once that the si.dyn* files and the dvscf files in the ph0 have been computed we can calculate the electron-phonon matrix elements.

We copy these files in the run_dir of the dvscf computation for the evaluation of the electron-phonon matrix elements.

dvscf_run_dir = os.path.join(run_dir,'dvscf')
if not os.path.isdir(dvscf_run_dir) : os.mkdir(dvscf_run_dir)
os.system('cp -r Electron_phonon_Si/phonon/_ph0/ Electron_phonon_Si/phonon/si.dyn* Electron_phonon_Si/dvscf')
os.system('cp -r Electron_phonon_Si/nscf/si.save/ Electron_phonon_Si/dvscf/')

0

In this case we use the nscf computations as starting point for the electronic quantities. Note that the calculator uses the option clean_restart=False. otherwise the dyn and ph0 files are erased.

prefix = 'si'
name = 'si.dvscf'
inp = I.PhInput()
inp.set_prefix(prefix)
inp['inputph']['fildvscf'] = "'si-dvscf'"
inp['inputph']['fildyn'] = "'si.dyn'"
inp['inputph']['electron_phonon'] = "'yambo'"
inp['inputph']['trans'] = '.false.'
inp.set_kpoints(Tools.build_pw_klist(kpoints))
#print(inp.convert_string())

results = code_ph.run(input=inp,run_dir=dvscf_run_dir,name=name,clean_restart=False)

run performed starting from existing results
run command: mpirun -np 4 ph.x -inp si.dvscf.in > si.dvscf.log
computation si.dvscf is running...

Note: The following floating-point exceptions are signalling: IEEE_DENORMAL

computation si.dvscf ended

Import in yambo

We create the yambo dir using the make_p2y function of the module Tools

yambo_dir = 'Electron_phonon_Si/yambo'

Tools.make_p2y(yambo_dir=yambo_dir,input_dir='Electron_phonon_Si/nscf/si.save')

Create the folder path Electron_phonon_Si/yambo
Executing command: cd Electron_phonon_Si/yambo; p2y -I ../nscf/si.save

Then a link of the elph_dir in the yambo run_dir

elph_dir = 'Electron_phonon_Si/dvscf/elph_dir'
if not os.path.isdir('Electron_phonon_Si/yambo/elph_dir'):
    src = os.path.abspath(elph_dir)
    dest = os.path.abspath('Electron_phonon_Si/yambo/elph_dir')
    os.symlink(src,dest,target_is_directory=True)

and we build the r_setup

Tools.build_r_setup(yambo_dir=yambo_dir,yambo_command='yambo_ph -J elph_dir')

Build the r_setup in the yambo_dir path Electron_phonon_Si/yambo

We use ypp_ph to generate the electron-phonon database that can be used by yambo

inp = I.YamboInput(args='ypp_ph -g g',folder=yambo_dir)
inp.set_scalar_variables(DBsPATH='elph_dir/')
inp

{'args': 'ypp_ph -g g',
 'folder': 'Electron_phonon_Si/yambo',
 'filename': 'yambo.in',
 'arguments': ['gkkp'],
 'variables': {'PHfreqF': 'none', 'PHmodeF': 'none', 'DBsPATH': 'elph_dir/'}}

rr = C.RunRules(mpi=mpi,omp_num_threads=omp)
code = C.YamboCalculator(rr,executable='ypp_ph')
#code.global_options()

Initialize a Yambo calculator with scheduler direct

name= 'GKKP'
code.run(input=inp,name=name,run_dir=yambo_dir)

run command: mpirun -np 4 ypp_ph -F GKKP.in -J GKKP -C GKKP
computation GKKP is running...
computation GKKP ended

        There are no o-* files.
        Maybe you have performed a computation that does not create any output file or wait_end_run
        and/or the dry_run option are active.
        Otherwise a possible error has occured during the computation

{'output': {},
 'report': 'Electron_phonon_Si/yambo/GKKP/r-GKKP_gkkp_gkkp_db',
 'dft': 'Electron_phonon_Si/yambo/SAVE/ns.db1',
 'elph_gkkp': 'Electron_phonon_Si/yambo/GKKP/ndb.elph_gkkp'}

Quasi-particle band structure

rr = C.RunRules(mpi=mpi,omp_num_threads=omp)
code = C.YamboCalculator(rr,executable='yambo_ph')
#code.global_options()

Initialize a Yambo calculator with scheduler direct

We include the path of the folder with e-p matrix elements using the -J option. Alternatively we could copy the e-p database in the SAVE folder

run_dir = 'Electron_phonon_Si/yambo'

inp = I.YamboInput(args='yambo_ph -g n -p fan -c ep -V gen -J GKKP',folder=run_dir)
inp.set_extendOut()
inp.set_array_variables(units='eV',GDamping=0.01)
inp.set_kRange(1,1)
inp

{'args': 'yambo_ph -g n -p fan -c ep -V gen -J GKKP',
 'folder': 'Electron_phonon_Si/yambo',
 'filename': 'yambo.in',
 'arguments': ['gw0', 'el_ph_corr', 'ExtendOut'],
 'variables': {'Nelectro': [8.0, ''],
  'ElecTemp': [0.0, 'eV'],
  'BoseTemp': [-1.0, 'eV'],
  'OccTresh': [1e-05, ''],
  'MEM_tresh': [51200.0, 'Kb'],
  'SE_Threads': [0.0, ''],
  'GDamping': [0.01, 'eV'],
  'RandQpts': [0.0, ''],
  'DysSolver': 'n',
  'GphBRnge': [[1, 12], ''],
  'ElPhModes': [[1, 6], ''],
  'QPkrange': [[1, 1, 1, 12], '']}}

Temp = [0,50,100,150,200,250,300]

study = D.Dataset(run_dir=run_dir,num_tasks=2,verbose=True,skip=True)
study.set_postprocessing_function(PP.yambo_parse_data)

for T in Temp:
    inp.set_array_variables(units='K',BoseTemp=T)
    idd = 'elph_T%s'%T
    study.append_run(id=idd,input=inp,runner=code,jobname =[idd,'GKKP'])

Initialize a Dataset with 2 parallel tasks

#study.runs[0]

results = study.run()

Run the selection [0, 1, 2, 3, 4, 5, 6] with the parallel task_groups [[0, 1], [2, 3], [4, 5], [6]]

Run the task [0, 1]
Skip the run of elph_T50
delete folder: Electron_phonon_Si/yambo/elph_T0
run command: mpirun -np 4 yambo_ph -F elph_T0.in -J "elph_T0,GKKP" -C elph_T0
computation elph_T0 is running...
computation elph_T0 ended
Task [0, 1] ended

Run the task [2, 3]
Skip the run of elph_T100Skip the run of
 elph_T150
Task [2, 3] ended

Run the task [4, 5]
Skip the run of elph_T200
Skip the run of elph_T250
Task [4, 5] ended

Run the task [6]
Skip the run of elph_T300
Task [6] ended

gap_G = [results[ind].data.get_gap(k_full=1,band_full=4,verbose=False) for ind in range(len(Temp))]
gap_G

[2.474098,
 2.4741519999999997,
 2.473849,
 2.472833,
 2.4709570000000003,
 2.4683100000000002,
 2.465083]

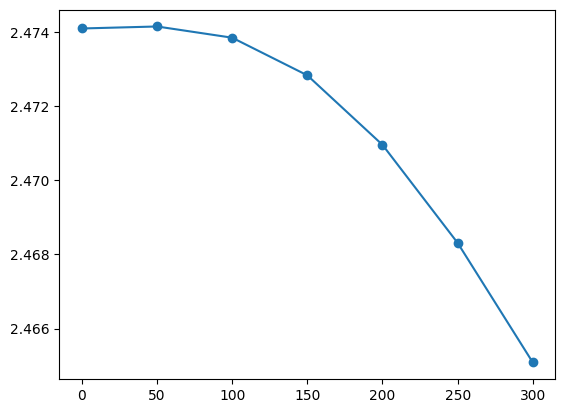

plt.plot(Temp,gap_G)
plt.scatter(Temp,gap_G)

<matplotlib.collections.PathCollection at 0x7f7a9902fbb0>
